Description
According to your request, we can adopt
fiber-glass tank, stainless steel tank, fiber-glass filter vessel, stainless
steel filter tank and pump & RO membrane of different brands for the reverse
osmosis system, all of the electronic components are optional for you.
This reverse osmosis system has both
automatic and manual modes. While in automatic mode, the RO membrane rinses,
the device of reverse osmosis system operates automatically. It runs when the
pure water is at low level, stops at high lever and at water shortage stage
automatically.
Short circuit, and water shortage of pressure pump protection.

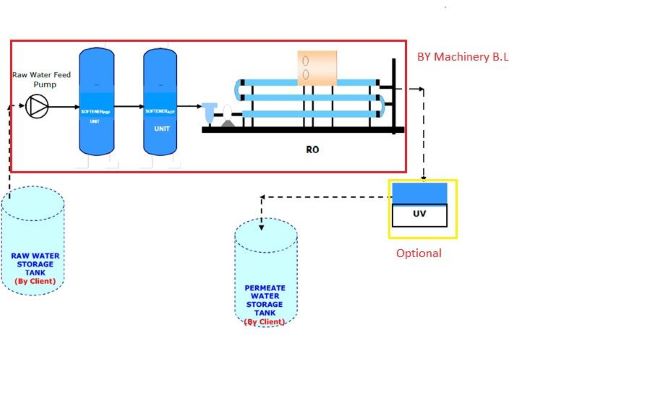

Treatment Scheme:
Process Description:
Pressure Sand Filter (PSF):
Raw water from raw water storage tank
(By Client) is pumped by raw water feed pump
to Pressure Sand Filter (PSF) where all the suspended solids are removed
with the help of sand bed. The filter is backwash when differential pressure
goes above 0.5 kg/cm2 or it stops giving desired output.
Activated Carbon Filter (ACF):
Filtered water from PSF is feed to
ACF to remove chlorine, remaining organics and color, smell with the help of
carbon media. The filter is backwash when differential pressure goes above 0.5
kg/cm2 or it stops giving desired output.
Antiscalant Dosing System:
The anti-scalant chemical is added online to protect
the membrane from scaling/ fouling.
RO System:
Then the water passes through the
Micron cartridge filter (MCF) given at the suction of high pressure pump (HPP).
The water pressure is boosted up so
as to filter the ions and from one side you get pure water (Permeate) and from other side
you get impure (Reject) water.
The permeate water is stored into the
product water storage tank (By client). The reject water is continuously
drained out.
Option: UV device for final disinfection also could be
provided as option with charge per Clint requirement.
Main Technical Data:
|
No |
item |
water purification system specification |
|
1 |
pump |
CNP/south/nanfang brand or Equal brands |
|
2 |
tank/vessel |
stainless steel 304 or fiber glass optional |
|
3 |
RO membrane |
DOW/Hydranautics /Toary or equal brand are optional |
|
4 |
CIP system |
CNP/south/nanfang brand or Grundfos brand optional |
|
5 |
PP filter |
stainless steel 304 |
|
6 |
PLC |
Omron/ Mitsubishi/ siemens brand |
|
7 |
electronic component |
Schneider brand |
|
8 |
pipeline |
SS304 or U-PVC optional |
Transportation:
Export standard packaging: wooden case
Port: Tianjin port or other assigned port
