Description
Your searching
product was discontinued to be replaced by upgraded model BY-NX-3

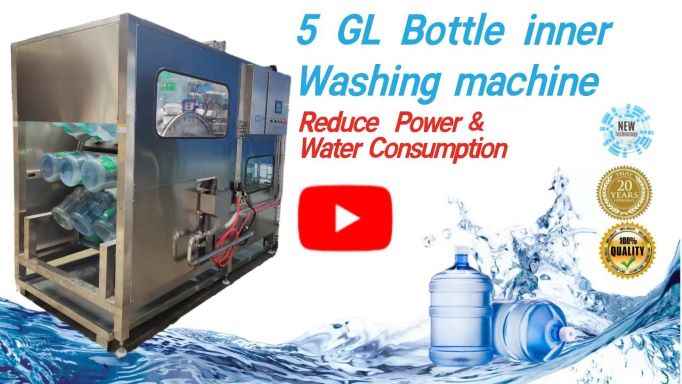

BY-NX-3000 Fully automatic particle friction 5 Gallon /19 liter Bottle internal washing machine
BY-NX-3000
as fully automatic particle friction internal washing machine designed to
assist in automatic washing big bottles (5 gallon / 19 liter bottle , 3 gallon , etc.) safely, fast and cost-effective in bottled
water plants.
Machine
functions and features:
BY-NX-3000 fully automatic particle
friction washing machine, which is featured by: the cleaning of the barrel uniform radiation arrangement around the main rotating disk, the main
rotating disk in the rotation at the same time, the surrounding barrel is also rotating, in the unwashed barrel into the appropriate
amount of friction particles, due to the rotation of the main rotating disk and
the barrel, so that the friction particles and the inner side of the barrel friction, so as to achieve a comprehensive cleaning of the
inner side of the package. Compare BY-NX-3000 automatic particle friction washing
machine with the brush-type barrel washing machine, to avoid the dead
corner caused by brush cleaning, barrel cleaning thoroughly, clean, easy to
multi-unit combination, solve the problem that packaging barrel inside
difficult to clean, with simple structure, easy installation, smooth operation,
easy maintenance and so on.
Particle Friction Washing Technology
Usage particle friction technology for washing in combination with simultaneous rotation of barrels in two axes including rotating the barrel in line with the main axis of the machine (main drum) as well as rotating the barrel around its axis, provides full access to all corners of the barrel for washing machine.
Main
technical data:
Model/Name:
BY-NX-3000 /Fully automatic particle friction internal washing machine
Dimension
(length*width*Height): 3200*1750*2250 mm
Barrel
size：18.9 liters
(5 gallons) can be customized
Power
supply: three-phase four-wire 380V~400V
Air
pressure: 0.6MP
Power
consumption: 2.3KW
capacity:
900-1000 barrel/hour
Net
Weight: 550kg
Transportation:
Export standard packaging: wooden case
Port: Tianjin port or other assigned port
